The Ultimate Guide to SMAW Welding: Principles, Process, Advantages, and Limitations

Shielded Metal Arc Welding (SMAW), widely known as stick welding, is the workhorse of the welding industry. While the technology traces its roots back to 1888 and the inventions of Nikolay Gavrilovich Slavyanov, it remains one of the most vital joining processes in modern construction, shipbuilding, and heavy fabrication.



But what exactly is SMAW welding meaning, suitable materials and notable tips, and how does it compare to other common welding processes like GMAW or SAW? In this guide, we break down the SMAW welding process, the equipment required, and how CNC machining plays the role in preparing for high-strength welds.









SMAW Welding Basics





SMAW stands for Shielded Metal Arc Welding. It is a manual arc welding process that uses a consumable electrode coated in flux to lay the weld.



Unlike TIG or MIG welding, which require external gas cylinders, SMAW is self-shielding. As the electrode burns, the flux coating disintegrates, creating a gaseous shield that protects the molten metal from atmospheric contamination (oxygen and nitrogen). This makes it the preferred method for outdoor work where wind might blow away shielding gas.





SMAW Essential Equipment





One of the biggest advantages of SMAW (stick welding) is the simplicity of the setup. Unlike other processes that require bulky gas tanks and complex wire feeders, a SMAW welder only needs a few rugged components to operate in the most demanding environments.



• Power Source



The heart of the operation is the Power Source, which is a Constant Current (CC) machine. This machine can deliver either Alternating Current (AC) or Direct Current (DC), maintaining a steady amperage even if the welder’s hand moves slightly, changing the arc length.





• Electrode Holder and Ground Clamp



Connected to the power source is the Electrode Holder, commonly referred to in the field as the "stinger." This is an insulated handle that grips the consumable rod and conducts the electricity. To complete the circuit, a Ground Clamp is attached directly to the workpiece or the welding table. Without this solid connection, the electrical loop is broken, and the arc cannot be sustained.





• Consumable Electrodes, Helmet, Flame-resistant Clothing, and SMAW Welding Gloves




Finally, the Consumable Electrodes (the "sticks") act as the filler metal, while Personal Protective Equipment (PPE) ensures the operator's safety. Professional welding requires a specialized helmet with an auto-darkening lens to protect against UV radiation, flame-resistant clothing, and heavy-duty SMAW welding gloves designed to withstand the intense heat and molten spatter characteristic of the process.







SMAW Electrode types





The performance of the SMAW welding process is largely determined by the coating of the electrode. Choosing the right "stick" is critical for the structural integrity of the joint. There are three primary categories of electrodes based on their flux composition:





Cellulosic Electrodes



These electrodes (such as the E6010) are known for their deep-penetrating arc and "aggressive" digging action. Because the flux contains high levels of cellulose, they produce a thin, easily removable slag and a significant amount of smoke. They are the preferred choice for welding through rust, oil, or paint, and are widely used for the "root pass" in pipeline welding where deep penetration is mandatory.





• Rutile Electrodes



Commonly used for general fabrication (such as the E6013), rutile electrodes contain high amounts of titanium dioxide. They are favored for their ease of use, offering a very stable arc, low spatter, and a smooth, aesthetically pleasing weld bead. The slag is often "self-peeling," meaning it pops off on its own as the weld cools. These are ideal for beginner welders or projects where appearance is a priority.





• Basic (Low-Hydrogen) Electrodes



Basic electrodes (such as the E7018) are the gold standard for high-strength structural welding. They produce a weld with exceptional ductility and resistance to cracking, making them essential for bridges, skyscrapers, and pressure vessels. However, these electrodes are moisture-sensitive. To prevent "hydrogen-induced cracking," they must be stored in a specialized electrode oven to keep the flux coating completely dry before using.

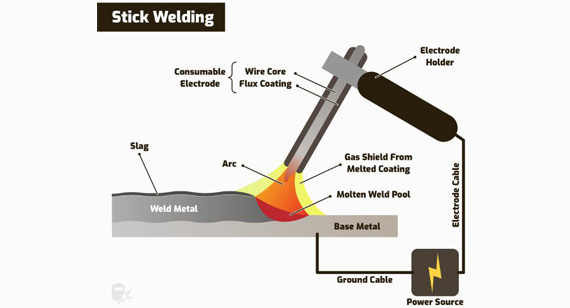

How SMAW Works: The Step-by-Step Process









The process follows a precise sequence of events:





Arc Initiation



The process begins when the welder "strikes" the electrode against the base metal, much like striking a match. This physical contact completes the electrical circuit, and as the welder pulls the electrode slightly back, a bridge of plasma—the electric arc—is formed.





Intense Melting and Fusion



The arc generates staggering temperatures, often reaching between 9,000°F and 10,000°F. This concentrated heat instantly melts the tip of the consumable electrode and the surface of the base metal simultaneously, creating a molten "weld pool" where the two materials fuse into a single piece.





Gaseous Shielding



As the heat consumes the electrode, the chemical flux coating disintegrates. This reaction releases a cloud of shielding gas that surrounds the weld pool. This gas acts as an invisible shield, preventing oxygen, nitrogen, and hydrogen in the atmosphere from contaminating the liquid metal, which would otherwise cause porosity and weaken the joint.





Slag Formation and Cooling



Simultaneously, the melted flux forms a liquid layer of slag that floats to the surface of the weld bead. This slag serves two purposes: it protects the cooling metal from oxidation and acts as an insulating blanket to slow down the cooling rate, which helps prevent the metal from becoming brittle. Once the weld is solid and cool, the welder uses a chipping hammer to remove the hardened slag, revealing the final, high-strength weld underneath.







SMAW Welding Tips for Beginners



If you are new to the SMAW welding process, keep these tips in mind:



• Travel Speed: Maintain a steady speed of 3 to 6 inches per minute. Moving too fast causes thin, weak beads; moving too slow causes "cold lap."

• Fillet Arc SMAW Welding Tutorial: When welding a T-joint (Fillet weld), hold the electrode at a 45-degree angle to the two plates, tilted slightly (10-15 degrees) in the direction of travel.

• Keep it Dry: Electrodes (especially low-hydrogen E7018) absorb moisture from the air. Store them in an oven to prevent weld porosity.










Advantages and Limitations of SMAW





Advantages of the SMAW





• Portability and Simplicity



One of the most significant benefits of SMAW is the lack of a required external shielding gas. Because the "gas" is generated by the electrode's own flux, there are no heavy cylinders to transport. This makes the equipment lightweight and highly portable.





• Well-performed in Outdoor Environments



Unlike MIG (GMAW) or TIG (GTAW) welding, which are highly sensitive to wind that can blow away the shielding gas, SMAW doesn't have this flawless because its gaseous shield created by the burning flux is concentrated and robust. This makes it goof for outdoor construction, pipeline repair, and maritime maintenance.





• High Tolerance for Surface Contamination



SMAW is highly adaptable when it comes to the condition of the base metal. While other processes require pristine, polished surfaces, SMAW electrodes (particularly cellulosic types) can burn through rust, scale, oil, and paint.





• All-Position Capability



You can use SMAW in any orientation—flat, horizontal, vertical-up, or overhead. It is turely versatile for structural steelwork for any workpiece position.





• Affordable Cost



Compared to pulsed MIG machines or high-frequency TIG units, SMAW power sources or other essential equipment are affordable and durable. There are fewer moving parts and no complicated wire-feed mechanisms, leading to lower maintenance costs over the life of the machine.







Limitations of SMAW





• Lower Productivity and Duty Cycles



The primary drawback of stick welding is its discontinuous nature. Because the electrode is consumed, the welder must stop frequently to replace the "stub" with a new rod.





• Extensive Post-Weld Cleanup



Every SMAW weld produces a layer of hardened slag. This must be chipped and brushed away after every pass. If the slag is not completely removed, it can become trapped in the next layer, leading to "slag inclusions".





• Carefully Controlling



You must maintain a consistent, microscopic arc gap while the electrode is simultaneously melting away and getting shorter. Controlling the molten puddle while managing this changing rod length rely on the practice or experiences.





• Material and Thickness Constraints



SMAW is generally not suitable for materials thinner than 1/16 of an inch (1.5mm) due to the high risk of "burn-through." Furthermore, it is not an effective process for reactive metals or those with high thermal conductivity.









Suitable Materials: What Metals Can You Weld with SMAW?





SMAW is good for ferrous metals like steel alloy and iron cast; materials like aluminum alloy, titanium and zirconium are not suited by using SMAW welding. The following details the compatibility of the base metal with SMAW:





Carbon Steel (Mild Steel)



This is the most common application for SMAW. It is used extensively for structural beams, plates (grades like Q235, A36), and heavy-duty machinery. Carbon steel is highly compatible with nearly all SMAW electrode types, offering excellent fusion and strength.





Low-Alloy Steels



SMAW is frequently used for high-tensile and low-alloy steels (like 4140 or chromoly) in pressure vessels and piping. These applications require specialized low-hydrogen electrodes (such as E8018 or E9018) to prevent cold cracking in the heat-affected zone.





Stainless Steel



Stick welding is highly effective for stainless steel in heavy industrial settings, such as chemical processing plants. By using electrodes like E308L, E309L, or E316L, welders can join thick stainless plates. While TIG is preferred for thin stainless pipes, SMAW is the go-to for on-site repairs and heavy-gauge cladding.





Cast Iron



SMAW is the standard method for repairing cracks in cast iron engine blocks, pump housings, and vintage machinery. This requires specialized nickel-based electrodes (such as Ni-55 or Ni-99) which are designed to handle the high carbon content of cast iron without causing the joint to become brittle.





Hardfacing and Surfacing



In the mining and earth-moving industries, SMAW is used to apply a layer of wear-resistant material onto softer steel parts (like bulldozer buckets or crusher teeth). These "hardfacing" electrodes are designed specifically to resist abrasion and impact rather than to provide structural joining.

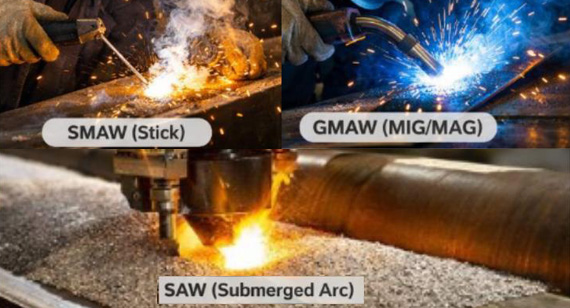

Comparison of SMAW vs. GMAW vs. SAW









SMAW is best suited for outdoor construction and remote repairs due to its mobility, while GMAW balances speed and ease of use for high-volume indoor manufacturing. SAW achieves the highest deposition rates and is ideal for heavy-duty, flat-position work requiring automation. Below table shows the comparison of SMAW vs. GMAW vs. SAW:





Table 1: Comparison of SMAW vs. GMAW vs. SAW















The Synergy: CNC Machining & SMAW Welding Workflow





In heavy industries—such as shipbuilding, bridge construction, or pressure vessel fabrication—components are often so massive that they cannot possibly fit inside a CNC machine. You cannot put an entire ship hull or a bridge span into a machining center.



To solve this, manufacturers use a two-stage workflow that combines the surgical precision of CNC machining with the on-site flexibility of SMAW welding.





Stage 1: The "Precision Prep" (CNC Machining)

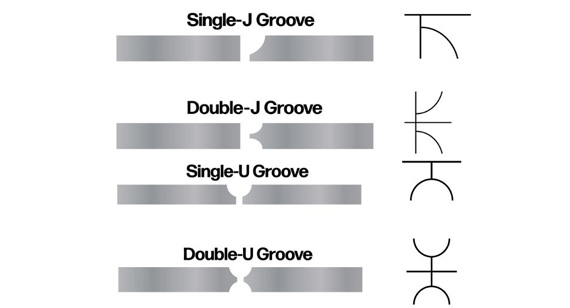

Before any welding occurs, the edges of the individual plates or components must be prepared. This is where VMT’s CNC milling services become essential. Instead of using a hand grinder, we use CNC mills to carve specific geometries—known as bevels or grooves (such as J-grooves or U-grooves)—into the edges where the parts will join.



Why CNC is Superior:



• Manual grinding by a worker is inherently inconsistent. CNC machining ensures the angle and depth of the groove are identical across every inch of the part.

• Because the CNC groove is mathematically precise, the welder fills only the exact amount of metal required. This prevents the wasteful over-use of expensive electrodes.

• A uniform, CNC-machined groove allows for a stable "root pass" (the first layer of the weld), which is the foundation of the entire joint's strength.









Stage 2: The "Field Assembly" (SMAW Welding)

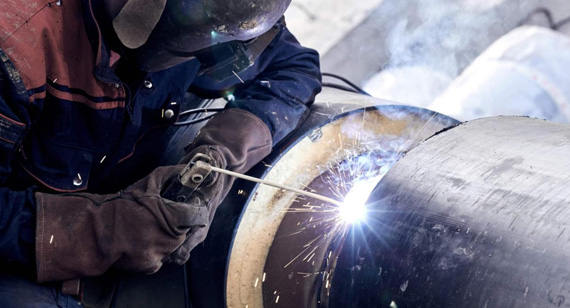

Once the precision-prepped parts leave the factory, they are transported to the construction site (the shipyard or the bridge location). This is where the SMAW process takes over.



The Action: The field welder aligns the parts. Because the edges were CNC-machined, they achieve a "perfect fit-up" with zero gaps. The welder first performs Tack Welding (small spot welds) to hold the massive structure in place, followed by the final SMAW passes.



The Advantage of this Workflow:



• Since the "weld prep" was done by a computer-controlled machine, the welder doesn't have to struggle with uneven gaps or rough edges.

• A perfect CNC fit-up significantly reduces the risk of common welding failures like porosity, voids, or slag inclusions.







Conclusion



This article has introduced SMAW welding basics, its advantages and limitations, process and tips to provide some essential references for your welding preparation. For this welding method, SMAW welding remains a flexible choice for modern infrastructure due to its welding position adaptability, portability, and affordable cost.



If you need high-precision CNC-machined components or pre-beveled parts ready for welding, you can contact us VMT CNC Machining Factory. At VMT, we specialize in preparing complex geometries that make your welding process smoother and your final assembly stronger.









FAQs





Q1: What is 1G, 2G, 3G, 4G, 5G, and 6G welding?



A: These refer to the welding position. 1G is flat (easiest), while 3G is vertical and 4G is overhead. 6G involves welding a pipe at a 45-degree fixed angle, considered the hardest test for a welder.





Q2: Is SMAW the same as stick welding?



A: Yes. "Stick welding" is the colloquial industry term for Shielded Metal Arc Welding (SMAW).





Q3: Is SMAW welding easy to learn?



A: It is easy to understand but difficult to master. Controlling the arc length manually while the electrode gets shorter requires significant practice.





Q4: What is the cost of SMAW?



A: It has the lowest equipment entry cost (machines are cheap) but high operational costs due to low speed and frequent electrode changes.





Q5: What is the difference between SMAW and GMAW?



A: SMAW uses a flux-coated consumable rod and requires slag removal. GMAW (MIG) uses a continuous wire fed automatically with an external gas bottle, requiring no slag removal.





Q6: Can SMAW weld Aluminum?



A: It is possible with special rods, but the results are often poor. MIG or TIG is recommended.
