316 and 316L Stainless Steel Die Casting: Advantages and Applications

Are you frustrated by parts that corrode in harsh environments or struggle to withstand chemical exposure? This can stall operations, increase maintenance costs, or even cause failure in critical systems. For manufacturers seeking high-performance components with exceptional durability, choosing the right material and casting method is essential. By selecting 316 stainless steel die casting or its low-carbon variant, 316L stainless steel die casting, you gain access to parts with outstanding corrosion resistance, mechanical strength, and precision—ideal for CNC machining and demanding industrial applications.

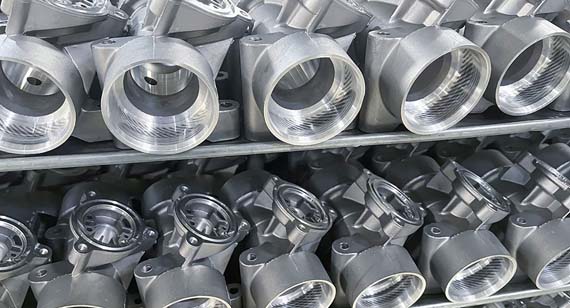

316 and 316L stainless steel die casting CNC parts deliver superior corrosion resistance, high tensile strength, and excellent creep and heat resistance. With excellent machinability, intricate molding capabilities, and compatibility with die casting processing services, they offer optimal strength and durability—perfect for marine, chemical, and food-processing industries.

To fully appreciate the benefits of 316 and 316L stainless steel die casting, let’s explore their differences, common grades, casting methods, and real-world applications.







Key Points

1. 316 vs. 316L: carbon content impacts corrosion and machinability.
2. Die casting stainless steel offers complex geometries with tight tolerances.
3. Common grades include 304, 17-4, 15-5, 410, 416, 420—serving different needs.
4. 316/316L excel in chemical, marine, and food-processing environments.
5. Compatible with CNC machining and finishing after casting for precision parts.



What Is 316 Stainless Steel?

316 stainless steel is an austenitic stainless alloy known for excellent corrosion resistance, particularly against chlorides, sulfuric acid, and marine environments. With about 16–18% chromium and 10–14% nickel, it also contains 2–3% molybdenum, boosting resistance to pitting and crevice corrosion.







What Is 316L Stainless Steel?

316L is the low-carbon version (≤ 0.03% C) of 316, designed to reduce carbide precipitation during welding. It maintains similar corrosion and mechanical properties, with enhanced weldability—making it ideal for post-cast machining and fabrication.



What Is Stainless Steel Die Casting?

Stainless steel die casting is a precision metal forming process that involves injecting molten stainless steel into a high-pressure mold cavity to create complex parts with excellent dimensional accuracy, superior surface finish, and outstanding strength. Unlike traditional sand casting or investment casting, die casting utilizes reusable steel molds (dies), which are capable of producing high volumes of identical components with minimal machining and post-processing. This makes the process ideal for industries that demand consistency, efficiency, and quality, such as aerospace, medical, automotive, and marine sectors.







How the Process Works

In stainless steel die casting, stainless steel is melted at high temperatures—typically over 1,400°C—and then rapidly injected into a precision-machined mold using either a hot-chamber or cold-chamber die casting machine. Because stainless steel requires much higher temperatures than metals like aluminum or zinc, cold-chamber die casting is most often used. The molten steel quickly fills the cavity, solidifies, and is then ejected from the mold.



Once removed, the cast part may undergo finishing operations such as:

• Trimming to remove flash
• Deburring or surface smoothing
• CNC machining for high-precision features
• Heat treatment for added strength

This workflow results in die casting CNC machining parts that meet tight tolerances with excellent repeatability.



Benefits of Stainless Steel Die Casting

• High strength-to-weight ratio
• Excellent corrosion and heat resistance
• Superior dimensional accuracy
• Efficient for high-volume production
• Suitable for post-casting CNC machining

When paired with CNC machining factories or die casting processing services, stainless steel die casting offers a one-stop solution from casting to finished part. This makes it ideal for producing stainless steel die casting CNC parts used in critical applications where precision and durability are essential.







Why Should You Choose Stainless Steel Die Casting?

In today’s manufacturing landscape, where performance, durability, and precision are non-negotiable, stainless steel die casting stands out as a superior choice. Whether you're producing industrial equipment, medical components, or automotive parts, selecting the right metal forming process can be the key to your product's success. Here's why 316 stainless steel die casting and 316L stainless steel die casting are becoming increasingly popular among engineers, product designers, and procurement professionals.



1. Exceptional Corrosion Resistance

Stainless steel—especially 316 and 316L grades—is highly resistant to corrosion, even in aggressive environments involving chemicals, seawater, or high humidity. This makes stainless steel die casting ideal for applications in the marine, chemical, food processing, and pharmaceutical industries where long-term exposure to moisture and corrosive elements is common.





2. Superior Mechanical Properties

Compared to aluminum or zinc, die casting CNC machining parts made from stainless steel offer higher tensile strength, greater hardness, and superior heat resistance. These features are essential for mission-critical parts in industries such as aerospace, automotive, and oil & gas. Additionally, 316L stainless steel provides added resistance to stress corrosion cracking and improved weldability.





3. Precision and Complex Geometry

The die casting process allows for the creation of intricate and detailed part geometries with high dimensional stability. When paired with CNC machining factories, stainless steel die casting can produce highly accurate components that meet demanding tolerance requirements without the need for excessive secondary processing.





4. Production Efficiency and Repeatability

Stainless steel die casting uses reusable steel molds, which means consistent quality across high production volumes. Once the mold is created, you can expect faster cycle times and reduced labor compared to traditional fabrication or machining from solid blocks of metal. It’s a scalable solution that supports both prototyping and mass production.





5. Surface Finish and Aesthetics

Die casting results in smooth, clean surfaces that can be polished or coated to meet functional or cosmetic requirements. This is particularly valuable in consumer electronics, architectural hardware, or medical devices, where both form and function matter.



When you partner with reliable die casting processing services or specialized providers like VMT, you gain access to seamless support from mold design to stainless steel die casting CNC parts delivery. These end-to-end solutions reduce lead times, eliminate unnecessary costs, and ensure product excellence.







What Grades of Stainless Steel Can Be Die Cast?

Are you struggling to find a stainless steel grade that matches both your mechanical and corrosion-resistance requirements for die casting? Choosing the wrong material can lead to premature failure, increased costs, and production delays. But with the right stainless steel grade, your die casting project can achieve superior strength, finish, and longevity. The good news? There’s a wide range of stainless steel options available, including 316 stainless steel die casting and 316L stainless steel die casting, each offering unique properties for different applications.

The most commonly die-cast stainless steel grades include austenitic, ferritic, martensitic, precipitation hardening, and duplex alloys. These categories offer a balance of corrosion resistance, strength, and heat tolerance, making them suitable for diverse die casting CNC machining parts across industries.



Understanding the five major categories of stainless steel used in die casting will help you choose the ideal material for your specific use case. Let’s explore what each of these stainless steel families offers and how they apply to stainless steel die casting CNC parts.







Austenitic Stainless Steel Castings

Austenitic stainless steels, such as 304, 316, and 316L, are the most commonly used grades in stainless steel die casting. They offer excellent corrosion resistance, high ductility, and non-magnetic properties. 316 stainless steel die casting is especially favored in marine, medical, and food-grade applications due to its molybdenum content, which enhances resistance to chloride corrosion. 316L, with its lower carbon content, is even more resistant to intergranular corrosion and is easier to weld, making it perfect for precision die casting processing services followed by welding or CNC finishing.





Ferritic Stainless Steel Castings

Ferritic stainless steels, such as 430, offer good corrosion resistance and high thermal conductivity at a more economical price. While they are less ductile than austenitic grades, ferritic types are great for applications that require magnetic properties and moderate corrosion resistance—such as automotive trim or industrial equipment housings. These are suitable when die casting CNC machining parts require less formability but more structural integrity.





Martensitic Stainless Steel Castings

If you need high strength and hardness, martensitic stainless steels (like 410, 420, or 440C) are ideal. These are heat-treatable and provide good wear resistance, making them suitable for cutting tools, surgical instruments, and mechanical parts. Although they offer less corrosion resistance than austenitic types, they excel in environments where mechanical stress and wear are primary concerns.





Precipitation Hardening Stainless Steel Castings

Precipitation hardening (PH) stainless steels such as 17-4 PH and 15-5 PH provide a unique balance of high strength and good corrosion resistance. They are widely used in aerospace, defense, and high-precision industries. These grades undergo heat treatment to enhance their mechanical properties, making them ideal for die casting CNC machining parts that require both toughness and dimensional accuracy.





Duplex Stainless Steel Castings

Duplex stainless steels combine the benefits of austenitic and ferritic types, offering twice the strength and better resistance to stress corrosion cracking. These are perfect for chemical processing, desalination, and marine components, where both strength and corrosion resistance are critical. While more challenging to cast and machine, CNC machining factories equipped with advanced tools can handle duplex alloys effectively.

Here’s a clear and concise comparison table of grades of stainless steel used in die casting, designed to help readers quickly understand their characteristics and applications:







This table gives a quick side-by-side look at the most used stainless steel types in die casting CNC machining parts and helps clarify the selection process based on application and properties.For projects involving 316 stainless steel die casting or 316L stainless steel die casting, austenitic grades remain the most reliable and versatile option.







Common Stainless Steel Die Casting Grades



Here's a detailed breakdown of common stainless steel die casting grades, clearly explained and easy to compare, to help readers and buyers choose the right material for their specific applications:



When selecting the right material for die casting CNC machining parts, understanding the properties of common stainless steel grades is essential. Each grade offers unique combinations of strength, corrosion resistance, and machinability. Below is a list of stainless steels frequently used in stainless steel die casting CNC parts, especially in industries requiring high precision, durability, and resistance to environmental wear.





304 Stainless Steel

304 is the most widely used austenitic stainless steel. It offers excellent corrosion resistance, good strength, and outstanding formability. It’s also non-magnetic in the annealed condition and maintains its performance across a wide range of environments. However, it may not perform well in chloride-rich or highly acidic environments.

• Applications: Food processing equipment, kitchen appliances, architectural structures, chemical containers.



17-4 Stainless Steel

Also known as 17-4 PH (precipitation hardening), this grade combines high strength, moderate corrosion resistance, and excellent machinability. It can be hardened by heat treatment, making it ideal for applications that require both durability and dimensional precision.

• Applications: Aerospace components, surgical tools, marine parts, high-performance industrial parts.



15-5 Stainless Steel

15-5 stainless steel is similar to 17-4 but offers better toughness and slightly improved corrosion resistance. It also responds well to heat treatment and offers excellent mechanical properties, making it suitable for precision die casting CNC machining parts.

• Applications: Aircraft fittings, structural components, gears, shafts, and fasteners.



410 Stainless Steel

410 is a martensitic stainless steel known for its hardness and wear resistance after heat treatment. It offers moderate corrosion resistance and is magnetic. It’s typically used where high mechanical strength is more critical than corrosion resistance.

• Applications: Cutlery, valves, fasteners, surgical instruments, pump shafts.



416 Stainless Steel

416 is a free-machining variation of 410 and is one of the easiest stainless steels to machine. While it offers lower corrosion resistance compared to austenitic grades, its machinability makes it ideal for mass production of precision parts.

• Applications: Automatic screw machine parts, gears, shafts, and fasteners.



420 Stainless Steel

420 stainless steel offers excellent polishability, high hardness, and good corrosion resistance in mild environments. Like 410, it is also heat-treatable and often used where wear resistance is needed more than corrosion protection.

• Applications: Surgical instruments, knife blades, dental tools, scissors, and molds.



These materials are widely used by CNC machining factories for their performance and reliability across different industries. For more guidance on selecting the right grade for your project, visit our section on Choosing the Right Stainless Steel for Die Casting.



Here is a comparison table of common stainless steel die casting grades, summarizing their key characteristics and typical applications to help you make informed decisions for your stainless steel die casting CNC parts or die casting CNC machining parts projects:





Common Stainless Steel Die Casting Grades Comparison Table





This table provides a quick reference for engineers and buyers seeking optimal stainless steel grades for die casting processing services. If you’re unsure which alloy suits your specific application, reach out to our team at VMT CNC machining factories for expert support.







316 and 316L Stainless Steel: Property Comparison

316 and 316L stainless steels are two of the most commonly used grades in the stainless steel family, especially in die casting and CNC machining parts. Both belong to the austenitic stainless steel group and offer excellent corrosion resistance, making them ideal for demanding applications such as marine environments, chemical processing, and medical equipment. Understanding their differences in chemical composition is crucial for selecting the right material for your die casting CNC machining projects.





Chemical Composition Overview

The chemical makeup of 316 and 316L stainless steels directly influences their mechanical properties, corrosion resistance, and weldability. Below is a breakdown of key elements and their roles in these alloys:





This composition difference, especially in carbon content, makes 316L more suitable for applications requiring superior weldability without the risk of carbide precipitation, which can lead to corrosion.



Mechanical Properties of 316 and 316L Stainless Steel

Understanding the mechanical properties of 316 and 316L stainless steels is essential when selecting materials for die casting CNC machining parts. These properties determine how the metals behave under stress, their durability, flexibility, and suitability for specific applications. Both grades are widely used in industries that demand excellent corrosion resistance combined with reliable mechanical performance.



Mechanical Properties Overview







These mechanical properties make 316 and 316L stainless steels ideal for a variety of applications where strength, corrosion resistance, and formability are critical. For CNC machining factories, choosing between 316 and 316L stainless steel die casting CNC parts depends largely on the need for weldability and mechanical load requirements.



Explore more about die casting CNC machining parts and die casting processing services with VMT to ensure the optimal material selection for your manufacturing needs.





Other Properties of 316 and 316L Stainless Steel

Beyond mechanical strength, 316 and 316L stainless steels offer several other critical properties that make them highly valued in the die casting CNC machining industry. These additional characteristics enhance their performance in challenging environments and broaden their application scope.



Key Additional Properties



• High Resistance to Pitting and Crevice Corrosion in Chlorine Environments

316 and 316L stainless steels are particularly known for their excellent corrosion resistance, especially against pitting and crevice corrosion caused by chloride ions. This makes them ideal for applications in marine environments, chemical processing, and any situation where exposure to salts or chlorides is frequent.



• Resistance to Rust, Sodium Salts, and Calcium Salts


Both grades resist rusting and degradation caused by common salts such as sodium chloride and calcium salts, further extending their durability in harsh environments like coastal areas or industrial plants.



• Slight Magnetism in Cast 316


While 316 stainless steel is generally considered non-magnetic, the casting process can introduce slight magnetism. This is a minor factor but worth noting for applications sensitive to magnetic properties.



• Good High-Temperature Strength


316 and 316L stainless steels maintain strength and stability at elevated temperatures, making them suitable for components exposed to heat, such as heat exchangers or engine parts.



• Austenitic Structure


Both 316 and 316L belong to the austenitic stainless steel family, which is characterized by excellent toughness, ductility, and corrosion resistance. The austenitic microstructure ensures these materials remain non-magnetic (with slight exceptions in cast parts) and easy to machine, an advantage in CNC machining factories.





By leveraging these other properties, manufacturers and CNC machining service providers can ensure high-quality, durable stainless steel die casting CNC parts suitable for demanding industrial applications. For more information, explore our offerings in die casting CNC machining parts and die casting processing services to find the best solutions for your projects.









What Are the Suitable Casting Processes for 316 and 316L Stainless Steel?



Choosing the right casting process for 316 and 316L stainless steel is essential to achieve the desired quality, precision, and performance in your die casting CNC machining parts. These stainless steel grades are widely used in various industries due to their excellent corrosion resistance and mechanical properties. However, the casting process plays a crucial role in determining the final part’s integrity, surface finish, and dimensional accuracy. Below, we explore the most suitable casting methods for 316 and 316L stainless steel.



Chemically Bonded Sand Casting

Chemically bonded sand casting is a popular choice for 316 and 316L stainless steel because it offers flexibility in mold design and excellent surface finish. This process uses a mixture of sand and chemical binders to form the mold, which is then cured to create a strong, reusable pattern. It allows for the production of complex geometries and large components with good dimensional accuracy. The chemical bonding ensures a smooth surface, minimizing the need for extensive machining afterward. This method is ideal for producing medium to large-sized parts, often used in industrial applications requiring robust stainless steel die casting CNC parts.





Investment Casting

Investment casting, also known as lost-wax casting, is highly suitable for producing high-precision 316 and 316L stainless steel components. The process involves creating a wax pattern, coating it with ceramic material, and then melting the wax to leave a detailed mold. Molten stainless steel is poured into this mold, resulting in parts with excellent surface finish and intricate details. Investment casting is preferred for small to medium-sized components that demand tight tolerances and smooth finishes, such as medical devices, aerospace parts, and specialized die casting CNC machining parts.





Centrifugal Casting

Centrifugal casting is particularly effective for producing cylindrical or tubular 316 and 316L stainless steel parts. In this method, molten metal is poured into a rotating mold, and the centrifugal force distributes the metal evenly, reducing impurities and improving density. This results in high-quality castings with superior mechanical properties and structural integrity. Centrifugal casting is commonly used for pipes, rings, and other rotationally symmetric parts that require excellent strength and corrosion resistance, making it a suitable process in the die casting processing services portfolio.



Each casting method offers distinct advantages depending on your part design, volume requirements, and application. At VMT, our CNC machining factories provide expert guidance to select the ideal casting process for your stainless steel die casting CNC parts, ensuring high-quality results tailored to your specific needs. For further details, check out our sections on die casting CNC machining parts and die casting processing services.





Here is a clear and concise table summarizing the suitable casting processes for 316 and 316L stainless steel:







This table helps to quickly understand the main processes and their advantages for 316 and 316L stainless steel die casting parts.









316 and 316L Stainless Steel Casting Processes: Process



The casting of 316 and 316L stainless steel involves a series of carefully controlled steps to ensure high-quality, precision parts that meet stringent industrial standards. This process, often based on investment casting, allows for complex geometries and excellent surface finishes, making it ideal for critical applications in aerospace, medical, and chemical industries.



Making the Mold

The first step begins with creating a detailed mold, often from sand or ceramic materials, designed to capture the exact shape and intricate details of the final product. The mold serves as the negative form into which molten metal will be poured.





Creating and Inspecting the Wax Pattern

A wax model of the part is crafted, which serves as a prototype. This wax pattern is meticulously inspected for dimensional accuracy and surface quality since it directly affects the final casting's precision.





Welding the Wax Pattern

Multiple wax patterns can be assembled or welded together on a gating system to allow molten metal to flow properly during casting, especially for complex or batch production.





Immersing the Wax in a Ceramic Slurry

The wax assembly is dipped repeatedly into a ceramic slurry, then coated with fine sand to build a robust ceramic shell around the wax pattern. This shell will form the mold cavity after the wax is removed.





Heating to Remove the Wax

The ceramic-coated wax assembly is heated in a kiln to melt and drain away the wax, leaving behind a hollow ceramic shell. This process, known as “lost-wax casting,” ensures high dimensional accuracy.

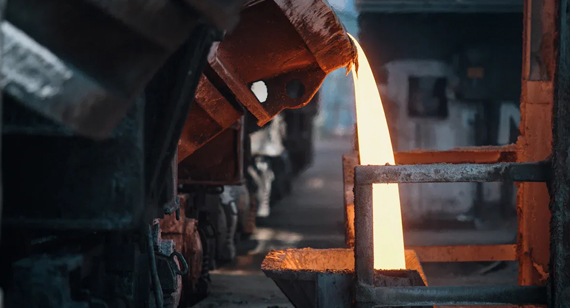

Pouring the Molten Metal

Molten 316 or 316L stainless steel is poured into the preheated ceramic mold, filling the cavity left by the wax. The metal solidifies, taking the shape of the mold.





Breaking the Shell

Once the metal has cooled and solidified, the ceramic shell is broken away to reveal the rough casting. This step requires careful handling to avoid damaging the part.





Shot Peening or Surface Treatment

To enhance mechanical properties and surface finish, the casting may undergo shot peening—a process of bombarding the surface with small spherical media—or other surface treatments like polishing or coating.





Machining if Necessary

Finally, the cast part is machined to meet precise dimensional tolerances and surface finish requirements. This step includes CNC machining services commonly provided by CNC machining factories, ensuring the final component matches design specifications exactly.





This process flow is essential for producing stainless steel die casting CNC parts that offer excellent corrosion resistance, mechanical strength, and surface quality, perfectly suited for demanding industrial applications.









What Are the Advantages and Disadvantages of 316 and 316L Stainless Steel?

Problem: Engineers and manufacturers often struggle to find a material that balances strength, corrosion resistance, and precision—especially in challenging environments like marine, medical, or chemical applications. Settling for subpar materials can lead to premature failure, increased costs, or rework.



Choosing the wrong stainless steel alloy could result in reduced part longevity, poor resistance to aggressive chemicals, or compromised structural integrity. Not all stainless steels are created equal, and overlooking these differences can be costly.



That’s where 316 and 316L stainless steel die casting stands out. These alloys offer exceptional corrosion resistance, strength, and design flexibility—ideal for industries that demand reliability. Let’s break down their full set of advantages and disadvantages to help you make the best decision for your next CNC machining or die casting project.

316 and 316L stainless steel offer superior corrosion resistance, excellent strength, and precision in die casting applications. They are ideal for marine, medical, and chemical industries. While 316L has reduced carbon for better weldability, both provide enhanced surface finishes. However, they come at a higher cost and require advanced machining capabilities.

To make an informed choice between materials in your next die casting CNC machining parts project, it’s essential to understand both the strengths and limitations of 316 and 316L stainless steel. The following breakdown will guide you through their most valuable features, potential drawbacks, and how these alloys perform in real-world manufacturing.







Advantages of 316 and 316L Stainless Steel

Customizability and Material Efficiency

Both 316 and 316L stainless steels are highly adaptable during the die casting processing services. They can be precisely cast into intricate geometries with minimal material waste. Their compatibility with CNC machining factories ensures tight tolerances and minimal post-processing, enhancing material efficiency and reducing overall costs.





Corrosion Resistance Better than 304 Stainless Steel

The standout feature of 316/316L stainless steel is their molybdenum content, which offers better resistance to chloride environments, such as saltwater or acidic media. This makes them far more resilient than 304 stainless steel in marine and chemical environments.





Excellent Mechanical Properties

With high tensile strength, yield strength, and good elongation, these alloys provide excellent mechanical integrity even under stress or exposure to harsh conditions. Whether used in aerospace, medical, or industrial settings, their strength adds long-term value to die cast components.





Precision Accuracy and Complexity

316 and 316L are especially compatible with stainless steel die casting CNC parts, allowing for complex, detailed part designs. Their flow properties in molten form make them ideal for investment casting or centrifugal casting, delivering highly accurate parts with fine structural details.





Enhanced Surface Finish

Post-casting, these stainless steels allow for excellent surface treatments. They can be polished to a high sheen or textured for industrial use, minimizing the need for secondary finishing processes and improving corrosion resistance even further.







Disadvantages of 316 and 316L Stainless Steel

Higher Material and Processing Cost

Compared to lower-grade stainless steels like 304, 316/316L are more expensive due to the addition of molybdenum and superior alloying elements. Furthermore, the CNC machining and die casting processing services needed for these materials may require advanced tooling and expertise, increasing the overall project cost.





Reduced Machinability

While machinable, 316 and especially 316L’s lower carbon content can lead to tool wear during CNC machining. Specialized cutting tools and slower speeds are often necessary, requiring precision from well-equipped CNC machining factories.





Heavier Than Alternative Alloys

The higher density of 316/316L means components made from them are heavier, which might not be ideal in weight-sensitive applications such as aerospace or robotics unless their corrosion resistance is essential.





Longer Lead Times

Due to complexity in casting and finishing operations, 316 and 316L parts can have longer production cycles. This is particularly true when secondary machining is required for high-precision or tight-tolerance applications.





To determine if 316 or 316L is right for your product, consider how these trade-offs align with your project requirements. For intricate, corrosion-resistant applications, these materials are unmatched.



Here is a clear and easy-to-understand comparison table outlining the advantages and disadvantages of 316 and 316L stainless steel for die casting and CNC machining applications:







This table helps engineers, buyers, and product designers evaluate the trade-offs when considering 316 stainless steel die casting or 316L stainless steel die casting for high-performance parts. For more guidance on material selection or processing, explore our full die casting processing services or connect with VMT’s experts.







What Are the Applications of 316 and 316L Stainless Steel Die Casting?

When designing components that require durability, corrosion resistance, and precision, engineers often face a challenge: how to ensure product performance in extreme or corrosive environments without sacrificing cost-efficiency or machinability. This is where 316 and 316L stainless steel die casting becomes a game-changer. Known for their outstanding corrosion resistance and mechanical strength, these alloys are ideal for high-demand industries. If you're seeking reliable performance in aggressive conditions—such as saltwater exposure, chemical processing, or high temperatures—then understanding the diverse applications of these materials is essential.

316 and 316L stainless steel die casting is widely used in industries such as aerospace, food processing, pharmaceuticals, marine, petrochemicals, and automotive due to its superior corrosion resistance, durability, and compatibility with CNC machining. These materials are ideal for manufacturing precision parts that must withstand harsh environmental conditions and mechanical stress.

Now that we've identified why these stainless steel alloys are highly favored, let's explore the specific industries and components where 316 and 316L stainless steel die casting proves most beneficial. From structural parts in aircraft to sanitary fittings in breweries, the versatility of these alloys is unmatched. You can also check our related article on What Grades of Stainless Steel Can Be Die Cast? to learn more about material selection for different applications.





Key Application Areas of 316 and 316L Stainless Steel Die Casting



1. Aerospace Structures

Used in high-strength, corrosion-resistant structural components where precision and reliability are paramount, such as brackets, housings, and mounting assemblies.





2. Food Processing Equipment

316L's low carbon content makes it perfect for sanitary applications, including conveyor systems, mixers, and containers that resist bacterial buildup and chemical cleaners.





3. Brewery Equipment

Often used for valves, tanks, piping, and filtration components due to its non-reactive surface and resistance to acidic environments like those created by hops and fermentation.





4. Pulp and Paper Processing Equipment

Ideal for handling sulfurous acids and other corrosive substances, ensuring long service life in bleachers, digesters, and paper machine components.





5. Petroleum and Petroleum Refining Equipment

Offers excellent pitting resistance in chloride-rich environments, making it suitable for valves, pumps, and offshore drilling systems.





6. Chemical Transport Containers

Provides leak-proof durability for chemical containment due to its superior resistance to corrosion, heat, and stress cracking.





7. Textile Industry Equipment

Used in dyeing machines and drying cylinders where chemical exposure and moisture require durable and stable materials.





8. Laboratory Benches and Equipment

Preferred for surfaces and equipment that must withstand constant cleaning and chemical exposure without degrading.





9. Marine Accessories

Highly resistant to saltwater corrosion, 316 and 316L are ideal for components like cleats, railings, and engine housings.





10. Heat Exchangers

Excellent thermal and chemical resistance allows for reliable heat transfer in both industrial and marine settings.





11. Marine Environment

From underwater enclosures to propeller shafts, 316 stainless steel die casting ensures long-term resilience in harsh maritime conditions.





12. Pharmaceutical

Used for cleanroom and sterile applications, including fluid delivery systems, processing machines, and storage containers.





13. Surgical Equipment

316L is commonly used for surgical instruments, orthopedic implants, and hospital-grade components due to its biocompatibility and precision finish.





14. Plates & Housings

Perfect for durable, flat components and protective housings in various mechanical and electrical systems.





15. Automotive (Gears and More)

Used in high-performance automotive components such as gears, clamps, brackets, and transmission parts, where strength and precision are critical.





Want to learn more about how we use 316 stainless steel die casting and 316L stainless steel die casting in these applications? Explore VMT's CNC Machining Services and discover how our die casting CNC machining parts can take your project to the next level.





Here's a clear, professional, and SEO-friendly table summarizing the applications of 316 and 316L stainless steel die casting:









This table helps showcase the broad utility and value of 316 and 316L stainless steel die casting across multiple sectors. For tailored components and expert support, explore VMT CNC Machining Services for high-precision stainless steel die casting CNC parts.







VMT: Start Your Project with Stainless Steel Casting CNC Machined Parts



When it comes to precision, reliability, and material performance, partnering with the right manufacturer makes all the difference. At VMT, we specialize in delivering high-quality stainless steel casting CNC machined parts that meet the demanding requirements of modern industries. Whether you're in aerospace, food processing, marine, or medical sectors, we understand the unique challenges your project faces — and we’re here to help you overcome them with professional, end-to-end die casting CNC machining services.



Why Choose VMT for Your Stainless Steel Die Casting Needs?



• Expertise in 316 and 316L Stainless Steel Die Casting

Our engineers are highly experienced in working with premium grades like 316 and 316L, known for their exceptional corrosion resistance and mechanical strength. These materials are ideal for parts exposed to harsh environments or requiring hygienic finishes.



• Precision CNC Machining Factories


We operate advanced CNC machining factories equipped with state-of-the-art technology. Every casting is refined to exact tolerances, ensuring a perfect fit and function. This allows us to provide die casting CNC machining parts that integrate seamlessly into your product designs.



• Flexible and Scalable Production


From low-volume prototypes to high-volume production runs, our CNC machining services are tailored to fit your scale. We offer full support from design review to final inspection, helping you bring your ideas to life efficiently and cost-effectively.



• Complete Quality Control and Testing


We implement rigorous quality assurance processes throughout every stage of production. Each part undergoes thorough inspection, including dimensional analysis, surface finishing, and material property verification.



• Fast Turnaround and Global Delivery


Our streamlined processes ensure shorter lead times without compromising on quality. Whether you're local or international, VMT delivers on time, every time.





Partner with VMT Today

With VMT, you gain more than a supplier — you gain a reliable partner in innovation. We combine material science, machining expertise, and customer-focused service to deliver components that perform exceptionally in real-world applications. If you're seeking 316 stainless steel die casting, 316L stainless steel die casting, or custom CNC machined parts, look no further.



Ready to start your project? Contact VMT today for a custom quote and discover how our stainless steel die casting processing services can elevate your manufacturing goals.











Conclusion: Why 316 and 316L Stainless Steel Die Casting Is the Smart Choice for Precision CNC Machined Parts



When it comes to durability, precision, and resistance to harsh environments, 316 and 316L stainless steel die casting offers one of the most reliable solutions in modern manufacturing. This article has walked you through the essential aspects—from the composition and mechanical properties of these alloys to the ideal casting methods, key advantages, and common industrial applications. Whether you're building aerospace components, chemical processing equipment, or precision die casting CNC machining parts, the combination of 316/316L stainless steel and advanced CNC machining services ensures that your components are built to last.



Moreover, the versatility of stainless steel die casting CNC parts allows manufacturers to achieve complex shapes, tight tolerances, and smooth finishes while maintaining excellent performance under stress, corrosion, or heat. Although 316 and 316L may come with slightly higher material and processing costs compared to alternatives like 304, their superior qualities often translate to lower maintenance costs, longer part life, and better ROI.



If you’re looking to start a project that demands high-performance stainless steel components, VMT stands ready with decades of experience, cutting-edge CNC machining factories, and a reputation for delivering reliable die casting processing services. From prototyping to mass production, we provide solutions that help you move from concept to reality faster and more efficiently.

Let VMT help you bring your stainless steel component designs to life. Request a quote today and explore how our expert team can support your next big idea.









FAQs

Q1: Can 316 stainless steel be cast?

Yes, 316 stainless steel can be cast using precision casting methods such as investment casting and sand casting. It's commonly used when components need excellent corrosion resistance, especially in marine or chemical processing environments. When precision and mechanical performance matter, 316 stainless steel die casting is an ideal choice.





Q2: Can stainless steel be die cast?

While traditional high-pressure die casting is not typically used for stainless steel due to its high melting point, other methods like investment casting and centrifugal casting are effectively used to manufacture stainless steel die casting CNC parts with high dimensional accuracy and superior surface finish.





Q3: Can 316L be cast?

Yes, 316L stainless steel—a low-carbon version of 316—is also suitable for casting. It's preferred when enhanced weldability and reduced risk of carbide precipitation are critical. 316L stainless steel die casting is frequently used in the pharmaceutical, food, and medical industries.





Q4: What is the casting equivalent of SS316?

The casting equivalent of wrought SS316 is CF8M according to ASTM A351. It offers similar chemical composition and corrosion resistance, making it ideal for pressure-containing parts and die casting CNC machining parts.





Q5: What is the best stainless steel for casting?

The "best" depends on the application. For general corrosion resistance, 316 and 316L are excellent choices. For high-strength and wear resistance, 17-4PH or 420 may be better. 316 stainless steel die casting is ideal for harsh, corrosive environments.





Q6: Is there a difference between 316 and 316L stainless steel?

Yes. The key difference is carbon content. 316L has lower carbon, making it more resistant to intergranular corrosion after welding. Both grades are used in stainless steel die casting CNC parts, but 316L is preferred for welded assemblies.





Q7: Can stainless steel be used for casting?

Absolutely. Stainless steel is widely used in casting, especially via investment casting and centrifugal casting. Its excellent strength and corrosion resistance make it a reliable material for die casting processing services.





Q8: Can 316 stainless steel be welded?

Yes. 316 stainless steel is highly weldable, especially when using low-carbon versions like 316L to prevent sensitization. This makes post-casting fabrication easier and more reliable in industrial applications.





Q9: What metals cannot be die cast?

Metals with very high melting points, such as stainless steel, titanium, and tungsten, cannot be high-pressure die cast. However, alternate casting methods like investment casting are used to produce die casting CNC machining parts from stainless steel.





Q10: Can you use molds on stainless steel?

Yes, molds are essential in stainless steel casting. In investment casting, a wax pattern is coated with ceramic to form the mold. After burnout, molten stainless steel is poured into the mold to create precision CNC machined parts.





Q11: Can 304 stainless steel be cast?

Yes, 304 stainless steel is often used in casting, especially for applications that require good corrosion resistance and formability. It’s widely used in decorative and industrial parts through investment casting or sand casting.





Q12: Can you cast 316 stainless steel?

Yes, casting 316 stainless steel is common for producing corrosion-resistant parts in marine, chemical, and food applications. It’s a top material for stainless steel die casting CNC parts where durability and cleanliness are critical.





Q13: What is the difference between 304 and 316?

The main difference is the presence of molybdenum in 316, which improves resistance to chloride corrosion. While 304 is more cost-effective, 316 stainless steel die casting is preferred for harsh environments.





Q14: Are 304 and 316 stainless steel compatible?

Yes, they are metallurgically compatible and can be used together in assemblies. However, galvanic corrosion can occur if both are exposed to an electrolytic environment—something to consider during CNC machining or assembly.





Q15: What is the SS316 equivalent material in casting?

The closest casting equivalent to SS316 is CF8M. It retains similar properties, including molybdenum content and corrosion resistance, making it suitable for die casting processing services.





Q16: What is the casting equivalent of 316L?

The casting equivalent of 316L is CF3M under ASTM A351. Like its wrought counterpart, CF3M offers excellent weldability and corrosion resistance, particularly for parts that require stainless steel die casting CNC machining.
