Metal Casting vs. Metal Fabrication: What’s the Difference?







Metalworking has two main ways to shape metal: casting and fabrication. Casting means pouring melted metal into molds, allowing it to cool and harden into the needed shape. Fabrication, on the other hand, uses cutting, bending, and joining solid metal pieces. Each method has its own pros and cons. Casting is great for making detailed designs, while fabrication is better for precise work. These methods also influence how they work with CNC machining services. CNC machining makes metal parts very exact, which is essential for high-quality production in a CNC machining factory. Understanding these methods helps you choose the best one for your project.





Key Takeaways

• Casting works well for making tricky shapes fast and in bulk. Use it for projects needing detailed designs.
• Fabrication is great for precise work and flexible designs. It’s best for custom sizes and small amounts.
• CNC machining improves casting and fabrication with smooth finishes and accuracy. It’s key for top-quality production.
• Think about the environment: fabrication uses less energy and makes less waste. It’s a greener option.
• Mixing casting, fabrication, and CNC machining gives the best results. This method balances cost, speed, and quality.





Understanding Casting in Metalwork







Definition of Casting

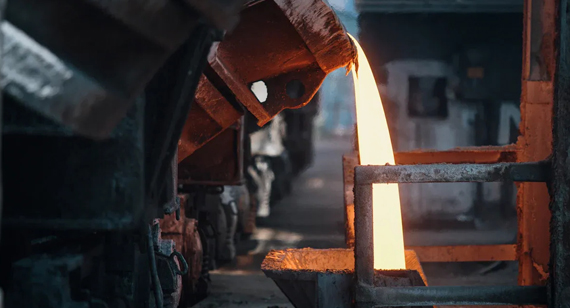

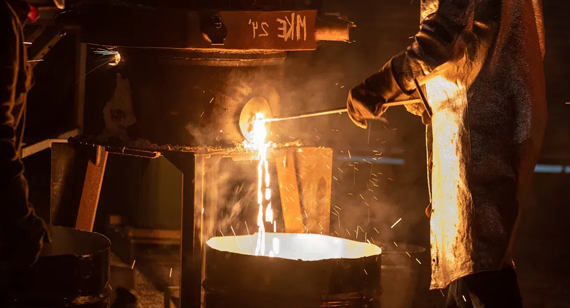

Casting is a way to make metal parts by pouring melted metal into a mold. This method is great for creating shapes that are hard to make with other techniques. It works well for detailed designs or strong parts. The process includes melting the metal, pouring it into a mold, and letting it cool until it hardens. After it solidifies, the mold is taken off, leaving the finished piece. Casting is flexible and efficient, making it an important part of making things in factories.





Characteristics of Casting



Casting has special features that make it different from other methods. How fast the metal cools affects its structure and accuracy. Thin parts cool faster, which can cause problems with filling the mold. Slower cooling makes the part stronger. The way melted metal flows, called fluidity, helps the mold fill properly and avoids mistakes. Heat loss during cooling also changes the quality of the part.











These features make casting a good choice for making strong and detailed parts, especially when accuracy matters.





Applications of Casting



Casting is used in many industries for different purposes. You can find cast metal parts in cars, buildings, and farming tools. It’s also important for making airplanes, oil equipment, and mining machines. About 90% of durable goods made each year use cast metal parts. In the U.S., the casting industry earns $33.7 billion and gives jobs to 200,000 people.









Casting is useful in many industries, making it a key process in metalworking. Whether you need strong parts for machines or detailed pieces for airplanes, casting provides dependable results.







Understanding Fabrication in Metalwork



Definition of Fabrication



Fabrication shapes solid metal into forms by cutting, bending, and joining. Unlike casting, it uses solid metal instead of melted metal. Tools and techniques help create exact designs from solid materials.



Key fabrication methods include:

• Cutting: Slicing metal to match the needed size.
• Bending: Folding metal into curves or angles for designs.
• Forming: Changing metal shape by pressing or hammering.
• Machining: Using tools to carve or drill detailed features.

Fabrication is great for custom designs and detailed projects.





Characteristics of Fabrication



Fabrication has features that make it different from other methods. Stress relief helps parts stay strong and stable. It removes leftover stress from machining, stopping cracks or bending during use.







Other important points:

• Leftover stress can weaken parts.
• Stress relief keeps parts even and prevents damage.
• Correct tolerances ensure parts work as planned.

Fabrication makes tough parts that handle hard conditions well.





Applications of Fabrication



Fabricated metal is used in many industries. Construction uses most fabricated metal for buildings. Cars also need fabricated parts, with demand rising over time.



Other uses include:

• Electronics: Metal parts for gadgets and circuits.
• Aerospace: Exact metal pieces for planes and rockets.
• Healthcare: Tools and machines made from fabricated metal.

Fabrication is flexible and reliable for industries needing strong and exact metal parts. Whether for buildings, vehicles, or devices, it delivers quality results.







Casting vs. Fabrication: Key Differences









Material Usage and Processes



Casting and fabrication use materials in very different ways. Casting pours melted metal into molds, which can waste material. For example, leftover metal from gating systems adds to the waste. Fabrication, like CNC machining, uses solid metal and removes only what’s needed. This makes it more efficient and less wasteful.



Here’s a simple comparison:







New methods like Selective Laser Melting (SLM) in casting help reduce waste. SLM uses just the right amount of metal powder. But older casting methods still waste material if molds can’t be reused. Fabrication is better at saving materials, making it ideal for projects needing less waste.



Tip: Choose fabrication, like CNC machining, for projects needing high material efficiency and low waste.





Design Complexity and Flexibility



Casting and fabrication handle designs in unique ways. Casting is great for making tricky shapes, hollow spaces, or natural forms. It creates these designs in one step, which is perfect for making many identical parts. Industries like cars and airplanes often use casting for this reason.



Fabrication, on the other hand, offers more precision and control. It’s best for projects needing exact sizes or smooth finishes. Casting molds can’t easily change, but fabrication methods like machining allow quick design changes. This makes fabrication ideal for prototypes or smaller production runs.







If you need detailed designs or large production, casting is a good choice. But for custom designs or prototypes, fabrication gives the flexibility you need.



Note: Changing designs to fit casting, like using bigger corners, can save up to 17%. Plan for design limits early to save money.





Precision and Surface Finish



Precision and surface finish are important in metalwork. Casting and fabrication give different results. Investment casting can be very precise, with tolerances of ±0.005 inches and surface finishes of 125 Ra. Sand casting, however, is less precise and has rougher finishes.



Fabrication, especially CNC machining, is extremely accurate. It can achieve tolerances as tight as ±0.0002 inches and very smooth finishes. This makes it perfect for things like medical tools or airplane parts where exact sizes matter.







Quality checks are also important. Casting can have problems if surface finish needs are unclear. Designers and makers may confuse terms like RMS and Ra, causing mistakes. Fabrication avoids this with better inspections, ensuring consistent quality.



Pro Tip: For projects needing exact sizes and smooth finishes, CNC machining is the best choice.





Cost and Production Speed



When picking between casting and fabrication, cost and speed matter a lot. Casting, like die casting, is cheaper for making many parts. It skips extra steps, cutting costs by up to 30% compared to Metal Injection Molding (MIM). This makes it great for projects needing lots of the same metal parts.



Fabrication works better for small or custom jobs. CNC machining removes material carefully, wasting less and staying accurate. It may cost more upfront because of special tools and skilled workers. But it’s perfect for detailed designs or test models.



Speed is also different for these methods. Die casting is faster overall, finishing projects quickly. MIM molds parts fast but needs extra steps after molding, slowing things down. If you need quick results, casting is usually faster than fabrication.



Tip: Use casting for big, cost-saving projects. Choose fabrication for custom or detailed designs.





Environmental Impact



Casting and fabrication also affect the environment in different ways. Casting, especially older methods, uses a lot of energy to melt and mold metal. Melting alone takes over 50% of the energy in casting. For example, in a Swedish iron factory, melting used 77% of the energy, showing its big role in climate change.



Fabrication uses less energy but still has waste. CNC machining creates leftover material when cutting metal. However, recycling and reusing materials have lowered its impact. Compared to casting, fabrication often uses less energy before production, making it better for eco-friendly projects.







If being eco-friendly is important, fabrication might be the better choice. While casting is good for mass production, it needs careful energy planning.



Note: Pick fabrication to lower environmental harm. For big projects, try energy-saving casting methods like Selective Laser Melting (SLM).





CNC Machining Services and Their Role



CNC Machining with Cast Metal



CNC machining makes cast metal parts more accurate and smooth. Casting can leave rough edges or flaws on parts. CNC machining fixes these issues, making parts meet exact needs. This is very important for industries like airplanes and healthcare. Even small mistakes can cause big problems there.



CNC machining also adds detailed features to cast parts. After casting a basic shape, it can carve complex designs or drill precise holes. This mix of casting and machining creates strong and detailed parts.



Another benefit is working with many types of cast metals. These include aluminum, steel, and titanium. Each metal has special traits, and CNC machining adjusts to them. It ensures good results every time. Whether fixing sand-cast or investment-cast parts, CNC machining improves quality and reliability.



Tip: CNC machining makes cast metal parts more accurate and smooth. Use it for projects needing high precision.





CNC Machining with Fabricated Metal



Fabricated metal gets better with CNC machining. It makes parts very accurate and consistent. This is helpful for making many identical pieces. CNC machining ensures each part matches the design perfectly.



• CNC machining gives high accuracy for every part.
• It makes identical parts with little difference, even in big batches.
• It creates detailed designs with great precision.



Industries like electronics and cars use CNC machining for fabricated metal. For example, after cutting and bending metal, CNC machining adds grooves or threads. This makes it great for complex designs.



Studies show CNC machining improves fabrication. For example:







Adding CNC machining to fabrication saves time, cuts costs, and improves quality.



Note: CNC machining turns fabricated metal into exact, high-quality parts. It’s a must-have for modern manufacturing.





Benefits of CNC Machining in Metalwork



CNC machining helps both casting and fabrication in many ways. Its biggest advantage is precision. It ensures every detail matches the design. This is crucial for industries like aerospace, where safety depends on accuracy.



Efficiency is another benefit. CNC machining automates steps, saving time. It uses tools like real-time monitoring to spot problems early. This prevents delays and keeps work on track.



CNC machining also reduces waste. Smart tools like AI-driven optimization use materials wisely. This makes the process eco-friendly, which is important for sustainable manufacturing.



• Digital tools make CNC machining smarter and faster.
• Real-time monitoring stops delays before they happen.
• AI tools save materials and improve quality.



Using CNC machining gives you precision, speed, and sustainability. Whether fixing cast parts or improving fabricated ones, it raises the quality of your work.



Pro Tip: Invest in CNC machining to boost accuracy, save materials, and stay ahead in your industry.







Selecting the Right Method for Your Needs



When to Choose Casting



Casting is great for making tricky shapes or many parts. It works well for hollow spaces or curved designs. This method saves time and keeps parts consistent. Industries like cars and airplanes use casting for strong and exact parts.



The type of metal matters in casting. Aluminum and steel are popular choices. Aluminum is light, so it’s good for car parts. Steel is tough, making it perfect for heavy machines. Casting molds handle tight corners and detailed patterns easily.



Casting is also cost-effective for making lots of parts. Methods like die casting waste less material and speed up production. But casting may need extra steps, like CNC machining, to smooth surfaces or add details.



Tip: Use casting for complex designs, strong parts, or big projects.





When to Choose Fabrication



Fabrication is best for exact sizes and custom designs. It uses cutting, bending, and welding to shape solid metal. This makes it ideal for prototypes or small batches.



Picking the right metal is important in fabrication. Aluminum bends easily, while mild steel welds well. Tight bends or detailed welds need strong materials. For example, healthcare tools use stainless steel because it’s durable and clean.



Fabrication allows quick design changes. Unlike fixed casting molds, it adapts easily to new plans. CNC machining adds grooves, threads, or other details to fabricated parts.



Note: Choose fabrication for precise, flexible, or small-scale projects.





Combining Casting, Fabrication, and CNC Machining



Using casting, fabrication, and CNC machining together improves metalworking. Casting makes the basic shape, fabrication strengthens it, and CNC machining adds details. This mix is great for projects needing both complexity and accuracy.



For example, casting can make a hollow aluminum car part. Fabrication adds welded supports to make it stronger. CNC machining ensures the part is the right size and has a smooth finish. This combo saves time, reduces waste, and boosts quality.



Combining methods also balances cost and performance. Casting handles big jobs, while fabrication and CNC machining focus on details. Together, they give the best results for your project.



Pro Tip: Mix casting, fabrication, and CNC machining for better efficiency and quality.



Casting and fabrication each have their own strengths in metalwork. Casting is great for making detailed shapes and many parts quickly. Fabrication works well for precise and custom designs. CNC machining improves both methods by adding accuracy and smoother finishes.



Mixing casting with 3D printing helps create complex designs. This keeps the strong material qualities of casting. The PICS method shows how this works. It uses 3D printing for tricky shapes and casting for familiar materials.



Deciding between casting and fabrication depends on your project’s needs, cost, and size. Using CNC machining with these methods gives the best results.







FAQ



What is the main difference between metal casting and metal fabrication?



Metal casting pours melted metal into molds to form shapes. Metal fabrication cuts, bends, and joins solid metal pieces. Casting is better for tricky designs, while fabrication is great for precise and custom work.

• Tip: Use casting for complex shapes and fabrication for detailed designs.





Can CNC machining services work with both casting and fabrication?



Yes, CNC machining helps both methods. It makes cast parts more accurate and adds fine details to fabricated ones. This is why CNC machining is important for industries needing exact metal parts.

• Pro Tip: CNC machining gives smoother surfaces and tighter size limits.





Which method is more cost-effective for large-scale production?



Casting is cheaper for making many parts at once. It quickly produces identical pieces and lowers the cost per part. Fabrication is better for small projects or test models because it’s more flexible.

• Note: For big jobs, casting saves both time and money.





How do I decide between casting and fabrication for my project?



Think about your project’s design, budget, and size. Casting is best for detailed shapes and large amounts. Fabrication works well for exact designs or smaller projects.

Tip: Combine casting, fabrication, and CNC machining for the best results.





Is metal casting or fabrication more environmentally friendly?



Fabrication uses less energy and creates less waste, making it greener. Casting, especially older methods, uses more energy to melt metal. Newer techniques like Selective Laser Melting (SLM) make casting better for the environment.

Note: Choose fabrication for eco-friendly projects or energy-saving casting methods like SLM.
