How does VMT deal with mechanical keyboard shells with high surface requirements?



This kind of mechanical keyboard is not a standard design, like GH60, GK61, DIY TKL, and 65, it is mainly sold to niche fans. Because it is taking the mid-to-high-end route, customers have strict requirements on the appearance and cannot have any defects on the aluminum mechanical keyboard case. According to customer requirements by custom CNC machining, our engineers formulate corresponding special tools, fixtures, and reasonable tool paths and finally meet the customer's quality requirements.




cnc machining mechanical keyboard

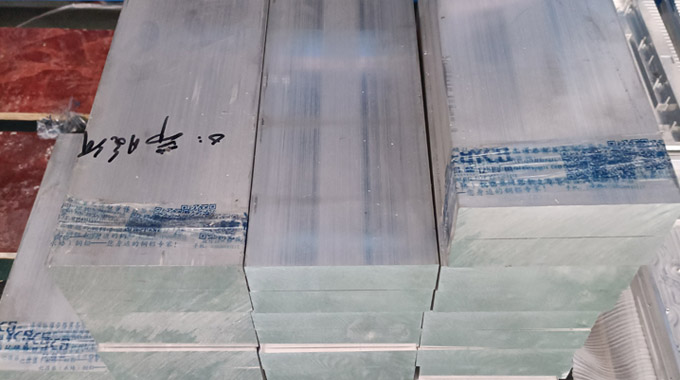

cnc machining mechanical keyboard case Raw materials




Raw materials



In order to make a high-end aluminum shell with high surface quality, like an Apple mobile phone, we must first start with materials selection. Among the aluminum raw materials, AL6061-T6 and AL6063-T6 are relatively cheap, and there are new material and secondary materials from the material level. Because the surface needs to be sandblasted by 200# grit, AL6063 has a higher aluminum content than AL6061, so AL6063 is the best choice, and a high-quality surface can be obtained.

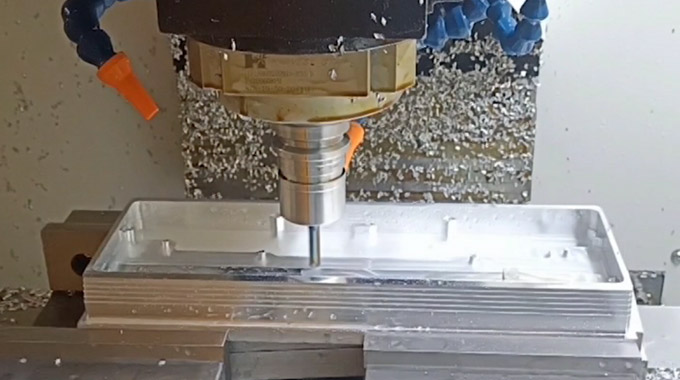

  CNC Machining Mechanical Keyboard Case



For parts with large volume and long milling time, during the milling adjustment stage, our engineers changed the 20 flat cutters to 20 milling cutters, which increased the Z-axis feed rate and increased the efficiency by 30%. In order to have a perfect surface quality and reduce the surface machine marks and joint marks, our programmers have reduced the joint number, made slight adjustments to the R angle, and used PCD tool to mill at one time.
cnc machining mechanical keyboard case

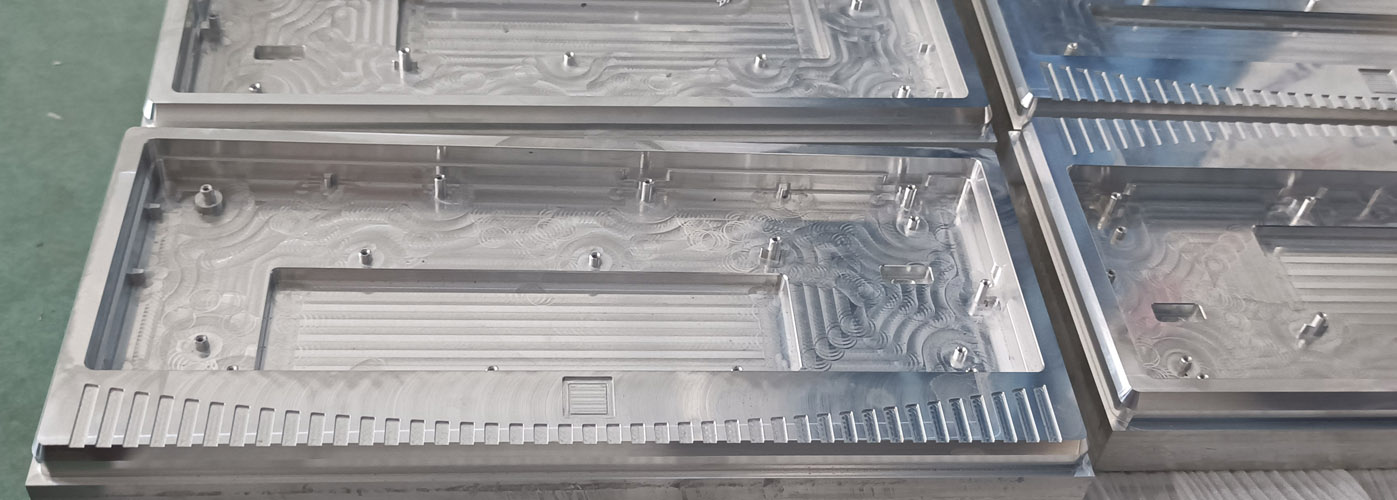

cnc machining mechanical keyboard Semi-finished products machining

Semi-finished products after CNC machining



A good semi-finished product is a prerequisite for a good surface treatment, so doing the last process of the semi-finished product is also very important. Before sending Iit to anodizing, our operators will manually use a 400# sponge to clean the sharp corners to prevent it from being smoothed after oxidation, So the anodizing layer will fall off. For the semi-finished parts, we will clean them with clean pure water once to prevent the cutting fluid causes corrosion, resulting in blisters after anodizing.

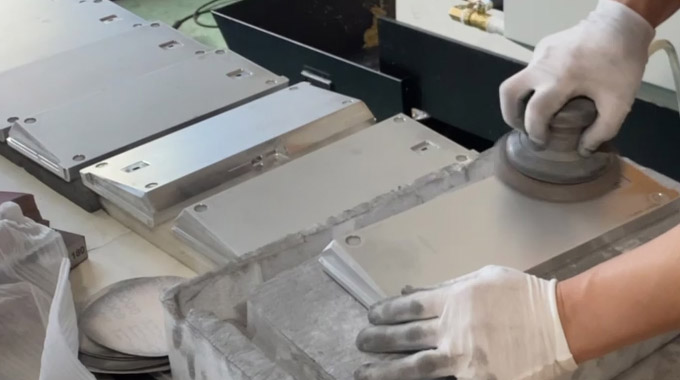

cnc machining mechanical keyboard case polishing

polishing

For the semi-finished mechanical keyboard case that will be painted and electrophoresed, we will increase the manual polishing, the purpose is to increase the adhesion after the surface treatment.

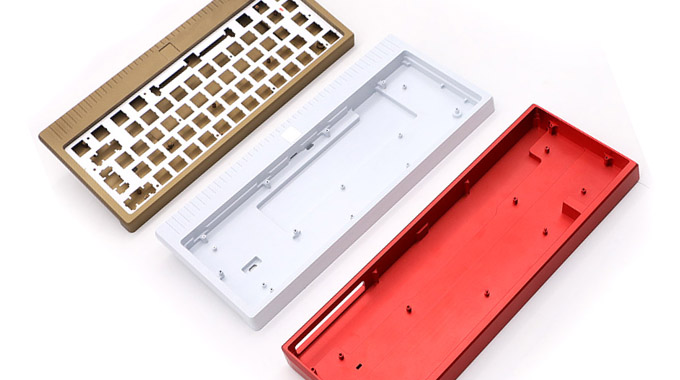

cnc machining mechanical keyboard finished product after surface treatment-1

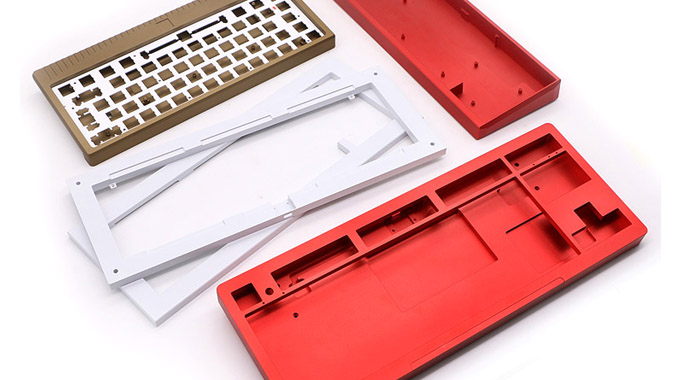

Finished product after anodizing

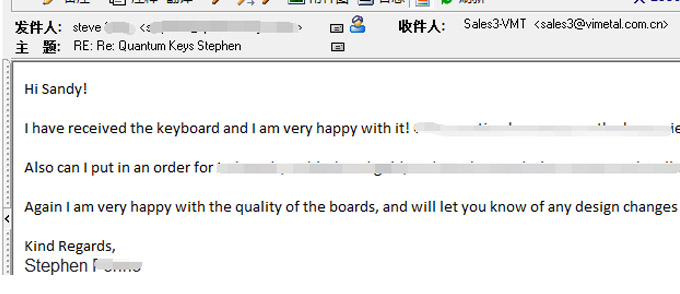

cnc machining mechanical keyboard case customer Reviews

Customer Reviews


I have received the keyboard and I am very happy with it! Also, can I place an order? Again I am very happy with the quality of the boards, and will let you know of any design changes.
