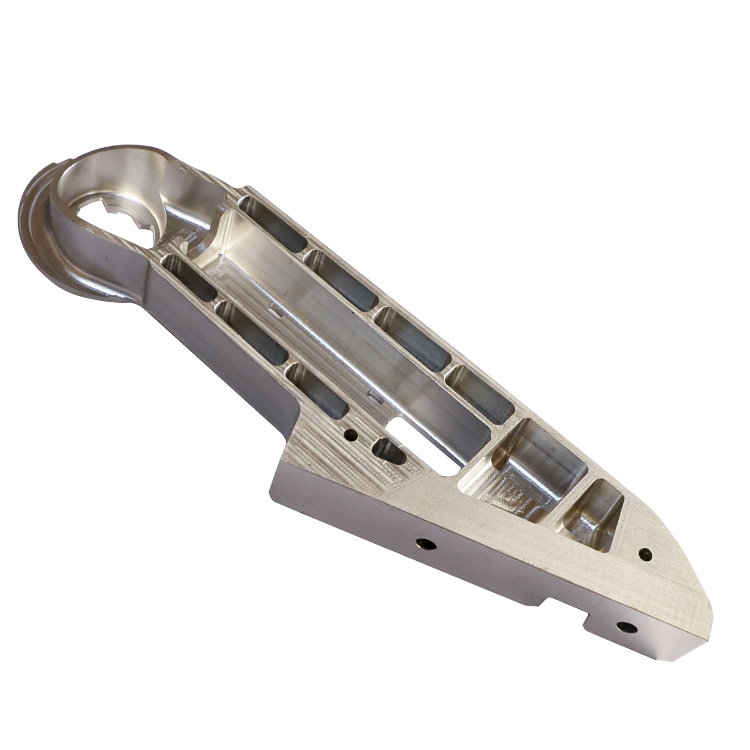

How can thin-wall deformation be reduced?
Thin aluminum walls are sensitive to three forces: residual stress in the material, clamping force from the fixture and cutting force during material removal. A part can look stable while it is clamped and move as soon as it is released. The manufacturing route should therefore consider free-state geometry, not only the on-machine measurement.
Common controls include using a more stable stock form, supporting the wall over a larger area, reducing local chuck pressure, balancing material removal, separating roughing from finishing and re-establishing datums after stress has been released. our 6061 case is a good example: changing stock form solved only part of the problem; fixture locating variation also had to be corrected before the process became stable.
When should you use tube, bar or solid stock?
Tube stock can save material and machining time when the geometry already resembles the final part. That does not mean it is always the lowest-cost production route. If the tube contains residual stress or has larger stock-form variation, a thin-wall precision component may move as material is removed. Rework, extra inspection and scrap can erase the raw-material saving.
Solid bar or larger stock increases material removal but can provide a more controllable starting condition for demanding parts. Extrusion can be useful when the cross-section is repeated and production volume supports that route. The correct choice should compare raw-material cost, stress condition, machining time, fixture strategy, expected yield and the functional tolerance on the drawing.
How should threads and press fits be planned before anodizing?
Anodizing is part of the dimensional plan, not just the appearance plan. Threads, bearing seats, bores, press fits, electrical contacts and sealing surfaces can all react differently to coating build-up or pre-treatment. Decide which surfaces are cosmetic, which are functional and which must be masked before the machining dimensions are finalized.
For critical fits, define whether the drawing dimension applies before or after finishing. If the finished dimension controls assembly, the manufacturer may need machining allowance, masking or post-finish inspection. This is especially important on internal threads and small bores, where even a modest coating change can be a large percentage of the available clearance.
When do conventional turning, Swiss and turn-mill make sense?
Use conventional CNC turning when the geometry is primarily rotational: ODs, IDs, faces, shoulders, grooves, tapers and threads. It is usually the simplest route for medium-size cylindrical parts when secondary features are limited. Swiss machining becomes attractive for smaller or slender parts because the work is supported near the cutting point and multiple operations can be combined efficiently. For suitable Swiss projects, we can support up to Ø20 mm × 800 mm, ±0.01 mm tolerance and ±0.002 mm concentricity after drawing review.
Choose turn-mill when the part is still rotational but also needs flats, slots, cross holes, radial ports or other milled features. Fewer transfers can protect datum relationships and reduce handling. The best route depends on geometry, quantity, inspection needs and the cost of each additional setup—not on using the most advanced machine available.
How should runout, concentricity and process stability be inspected?
Inspection should mirror the assembly. A bore and OD that rotate together may need relationship-based measurement rather than two separate diameter checks. Runout, coaxiality or related GD&T should reference the functional datum system. For threads, use an agreed gauge or defined measurement method. For finished fits, confirm whether inspection occurs before or after anodizing.
For repeat production, one passing first article is not enough. Process stability matters. We can support a 12-step quality system, key-process CPK ≥1.68 and 100% dimensional OQC to your drawings. SPC can be added where trend information is useful, especially when the goal is to distinguish random variation from material, tooling, workholding or datum-related drift.
What actually drives the cost of custom aluminum CNC turning?
Material price is only one part of the quote. Cost is also driven by stock form, material removal, cycle time, setup count, tolerance, thread complexity, deep bores, cross holes, deburring access, finishing, masking, inspection effort, documentation and quantity. A part with simple external geometry can still be expensive if it contains a difficult internal bore or multiple post-finish critical dimensions.
Do not reduce cost by loosening every tolerance blindly. First identify which dimensions are truly functional. Relaxing non-critical dimensions, reducing unnecessary setup changes, choosing a stable stock form and designing secondary features for tool access often produces a better saving without changing product performance. A useful supplier should show where the manufacturing cost is coming from, not only return a number.
How do you move a validated prototype into repeat production?
Use the prototype to lock the manufacturing knowledge that matters: approved stock form, datum strategy, fixture support, machining sequence, tool access, deburring method, finish specification, masking, critical dimensions and inspection method. Then confirm those controls in a pilot run before a larger release.
For a second-source or transfer project, compare the new route against the released drawing and approved reference parts rather than asking the new supplier to “make something similar.” Record the drawing revision, approved finish, inspection report format, packaging and any appearance standard. The goal of production transfer is not merely to reproduce dimensions once; it is to reproduce the same functional result consistently.
