Material Stress Problem
Residual stress in the original 6061 tube contributed to dimensional movement as material was removed during CNC turning and milling.
6061 Aluminum CNC Machining Deformation Case Study: Solving Residual Stress and Dimensional Instability
A precision aluminum part can meet its dimensions during machining and still fail after material stress is released or the part is re-clamped. In this project, a Japanese customer required a Ø170 mm 6061 aluminum component with tight dimensional, parallelism, and roundness requirements, but the initial machining process could not maintain stable results.
The problem was not caused by one machining parameter. VMT traced the instability to two separate sources: residual stress in the aluminum stock and excessive variation in the fixture locating datum. By changing the material strategy, analyzing the process with SPC, optimizing the fixture locating point, and verifying dimensions with CMM inspection, the dimensional instability was brought under control.
Project at a Glance
- Client
- Japanese Customer
- Part
- Precision Aluminum CNC Machined Component
- Part Size
- Ø170 mm
- Material
- 6061 Aluminum
- Initial Stock
- 6061 Aluminum Tube
- Revised Stock
- Solid Aluminum Stock
- Machining Process
- CNC Turning + CNC Milling
- Main Challenge
- Residual Stress + Fixture Datum Instability
- Inspection
- CMM + SPC Analysis
Project Background
Tight Dimensional and Geometric Requirements on a Ø170 mm 6061 Aluminum Part
The customer approached VMT with a precision aluminum CNC machining project from Japan. The component had an outside diameter of approximately Ø170 mm and required a combination of tight dimensional and geometric tolerances.
Ø170 mm Part Size
0.02 mm Critical Dimensional Accuracy
0.03 mm Parallelism
0.01 mm Roundness

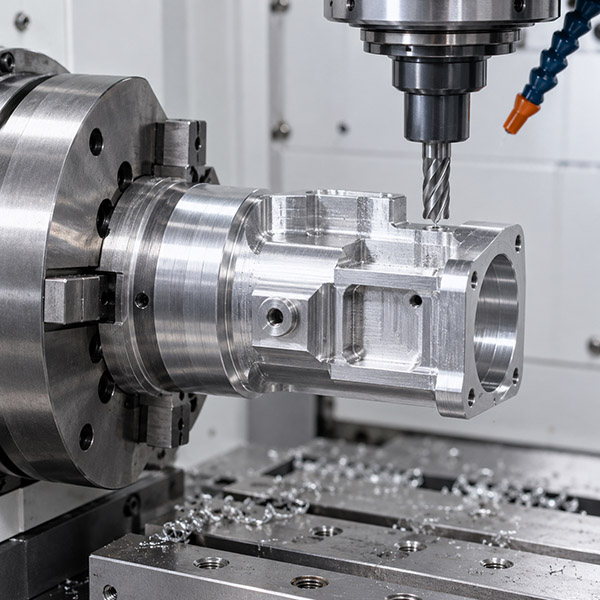

The part required both CNC turning and CNC milling operations. Because the component geometry allowed the possibility of starting from tube stock, the initial manufacturing plan used 6061 aluminum tube to reduce raw-material waste and machining cost.
From a quotation perspective, this was an attractive solution. From a dimensional-stability perspective, however, it created a much greater challenge.
Initial Machining Trial
What Went Wrong During the First CNC Machining Trial?
During the first turning and milling trial, the finished component could not consistently meet the drawing requirements.
The initial reaction in a precision machining project might be to adjust:
- tool offsets;
- cutting parameters;
- toolpaths;
- clamping pressure;
- machine compensation.
However, repeated process adjustments did not eliminate the dimensional variation. The machining team therefore had to determine whether the error was being created by the machining operation itself or released from the material during machining.
After further trials and material investigation, VMT identified stress deformation in the 6061 tube stock as one of the primary causes.
Root Cause 1
Residual Stress in the 6061 Aluminum Tube
Residual stress can remain inside aluminum because of previous manufacturing processes such as extrusion, heat treatment, quenching, straightening, rolling, or prior forming.
Before machining, these stresses may remain internally balanced. Once CNC turning or milling removes material, especially unevenly around a relatively thin section, the original stress equilibrium changes.
The part can then:
- change diameter;
- lose roundness;
- distort after unclamping;
- shift relative to the machining datum;
- move outside a tight dimensional tolerance.

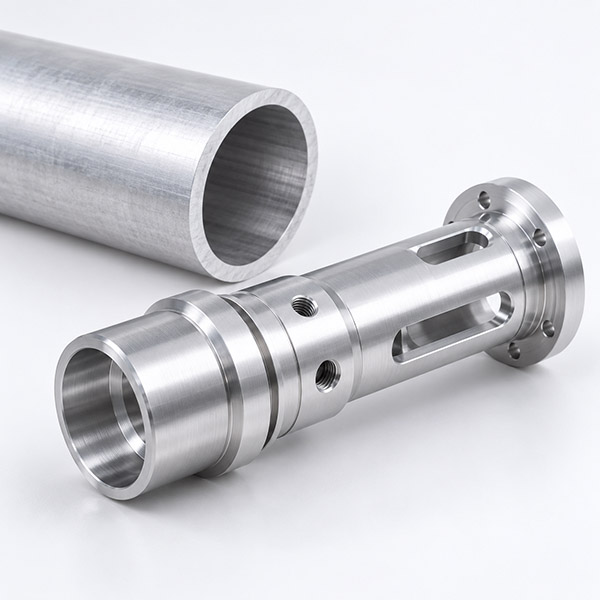

This is particularly important when a precision component is machined from tube stock because the stock manufacturing history and wall condition can affect how stress is redistributed as material is removed.
Engineering takeaway: For applications where dimensional stability is more important than minimizing raw-material usage, starting stock should be selected based not only on cost but also on stress condition and machining stability.
Material Strategy
Why VMT Changed from Tube Stock to Solid Material
Once the team confirmed that the original 6061 tube was contributing to deformation, the material strategy was changed. Instead of continuing to optimize a process around unstable stock, VMT switched to solid aluminum material to create a more controllable machining condition and protect the customer's delivery schedule.
This increased material consumption and required more machining, but it reduced one major source of uncertainty.
The lowest-cost raw material is not always the lowest-cost manufacturing solution. If lower-cost stock causes repeated machining trials, dimensional failures, rework, inspection delays, or scrap, the final cost per acceptable part may actually increase.
Tip: For precision aluminum parts with high material removal, thin remaining sections, or tight geometric tolerances, material condition should be reviewed during quotation rather than after machining problems appear.
Second Problem
Material Change Alone Did Not Solve the Dimensional Instability
Changing the stock improved the material situation, but the first component machined from the revised material still showed a dimensional deviation during CMM inspection.
According to the original project record, the first-piece measurement remained outside the target by approximately 0.002 mm.
That result was important because it showed that the project did not have only one root cause.
If VMT had stopped the analysis after changing the material, the remaining instability could have continued into repeat production.
The engineering team therefore moved from a material investigation to a process capability and fixture investigation.
Root Cause 2
Fixture Locating Datum Variation
For high-precision CNC parts, a fixture does more than hold the workpiece. It defines how the part is repeatedly positioned relative to the machine coordinate system, cutting tools, machining datums, and previously machined features.
Even when the CNC machine itself is capable of high repeatability, excessive variation in the fixture locating reference can cause every newly loaded component to sit slightly differently.
Fixture Datum Problem
Excessive tolerance in the locating reference caused repeated clamping variation and transferred that instability into the machined dimensions.
During SPC analysis, VMT systematically reviewed the process variables affecting dimensional stability. The investigation eventually identified excessive tolerance in the locating reference used during clamping. That variation was being transferred into the position of each workpiece during machining.
Process Analysis

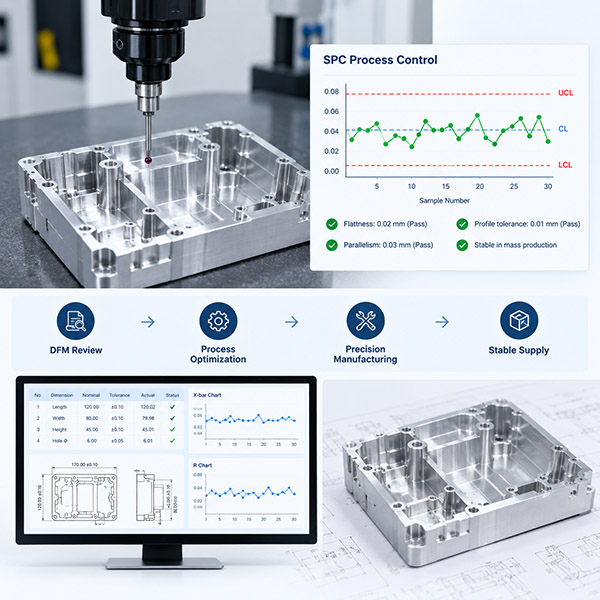

Why SPC Analysis Was Important
One out-of-tolerance measurement does not automatically reveal the cause.
If a machinist reacts to every dimensional change by adjusting a tool offset, the adjustment may hide the symptom without correcting the process.
SPC provides a more systematic way to identify whether dimensional variation is:
- random;
- repeating;
- gradually drifting;
- related to tooling;
- related to material;
- related to clamping or location.
For this 6061 aluminum project, process data helped VMT separate the remaining dimensional instability from the earlier material-stress problem. Instead of continuing to adjust cutting parameters, the team focused on how the workpiece was being located.
VMT Solution
Replace the Unstable Locating Reference and Rebuild Process Stability
Once excessive variation in the fixture locating reference had been identified, VMT changed the fixture and replaced the problematic locating point. The objective was to ensure that each new component entered the machining cycle from a more repeatable reference condition.
The original 6061 tube-stock strategy was replaced when its residual-stress behavior proved unsuitable for the required dimensional stability.
The unstable positioning reference was redesigned so repeated clamping would not introduce excessive dimensional variation.
The machining setup was referenced to a more reliable locating condition, reducing cumulative positioning error.
Dimensional data was reviewed to determine whether variation originated from machining, material, or workholding.

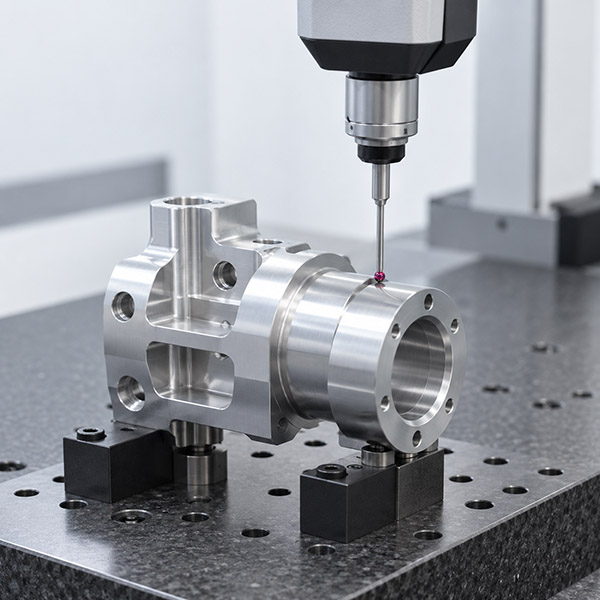

The finished components were measured with three-dimensional inspection equipment to verify critical dimensions and geometric requirements.
Engineering Analysis
Why Material and Fixture Problems Can Be Easily Confused
This project demonstrates a common difficulty in precision CNC machining: two different root causes can produce similar dimensional symptoms.
Both residual stress and poor workholding can create dimensional movement, roundness variation, parallelism errors, and unstable first-piece inspection results. But the solutions are completely different.
If the Root Cause Is Residual Stress
- different stock;
- stress-relieved material;
- balanced material removal;
- staged machining;
- stabilization between roughing and finishing.
If the Root Cause Is the Fixture
- different locating points;
- improved datum surfaces;
- reduced clamping distortion;
- soft jaws or mandrels;
- axial support or fixture repeatability improvement.
This is why VMT does not treat every aluminum deformation problem as a simple feeds-and-speeds issue.
DFM and Production Planning
How Would VMT Review a Similar Project Today?
Review the Drawing and Functional Datums
The engineering team first identifies which dimensions actually control assembly and function, including parallelism, roundness, concentricity, flatness, bore-to-datum relationships, critical wall thickness, and mating surfaces.
Review Aluminum Alloy and Stock Form
A drawing that simply specifies “6061 aluminum” may not provide enough information for a deformation-sensitive component. The engineering team may also need to consider T6 vs. stress-relieved tempers such as T651 where suitable, plate vs. bar vs. extrusion vs. tube, material certificate requirements, stock size, and the amount of material removal.
Review the Roughing and Finishing Sequence
For high material-removal parts, critical dimensions should not always be completed before the majority of stress has been released. A staged route may be more stable: rough machining → stabilization → datum re-establishment → semi-finishing → finish machining → inspection.
Review Fixture Repeatability
The fixture must repeatedly locate the part without forcing it into an artificial shape or introducing excessive datum variation.
Validate with Inspection Data
Prototype validation should confirm not only that one component passes, but that the process can repeatedly hold the required dimensions.
Related technical guides: 6061 aluminum stress relief and 6061-T6 vs 6061-T651 aluminum.
Lessons for Engineers and Buyers
What You Can Learn from This 6061 Aluminum Project
Do Not Choose Stock Only by Material Utilization
Tube, extrusion, or near-net stock can reduce material cost, but dimensional stability must be evaluated against the drawing requirements.
One Problem Can Have Multiple Root Causes
Replacing the material did not completely solve this project because fixture positioning was also contributing to dimensional instability.
Do Not Adjust Tool Offsets Before Understanding the Trend
If the real cause is fixture repeatability or stress release, repeated tool-offset corrections may create additional variation.
Geometric Tolerances Require Stable Datums
Parallelism, roundness, concentricity, and position depend on more than machine accuracy. The fixture and datum strategy must support the drawing.
Prototype Inspection Should Validate the Process
A first article is not only a finished sample. It is an opportunity to identify material, tooling, workholding, and measurement risks before batch production.
VMT Manufacturing Support
How VMT Supports Deformation-Sensitive Aluminum CNC Projects
For precision aluminum parts, VMT can support the manufacturing process from drawing review through repeat production.
- DFM review;
- aluminum material and stock-form selection;
- CNC turning;
- CNC milling;
- 5-axis CNC machining;
- custom fixture design;
- roughing and finishing sequence optimization;
- toolpath optimization;
- in-process dimensional checks;
- CMM inspection;
- SPC process monitoring;
- prototype validation;
- batch production;
- surface finishing coordination;
- final inspection;
- protective packaging.
The objective is not simply to make one acceptable sample. The objective is to establish a process that can maintain the required dimensions after machining, unclamping, inspection, finishing, assembly, and repeat production.
